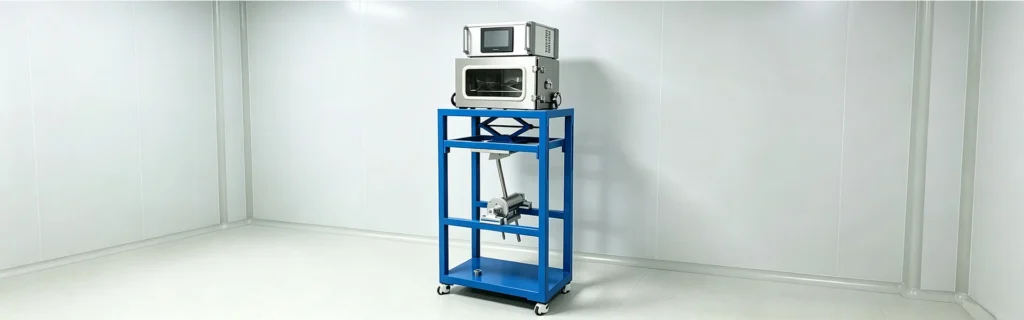

The detector impact test device is designed and produced in accordance with the appendix of EN 54-7, and is used for impact testing of fire alarm system products such as detectors.

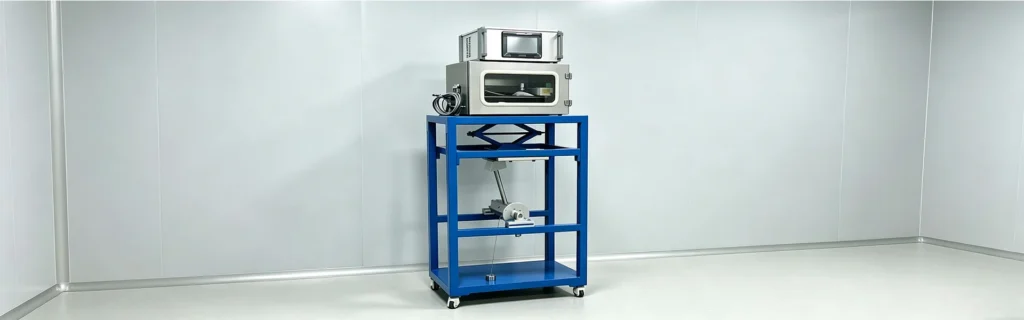

The device consists of a pendulum, an impact head, a weight, a frame, and an adjustable sample mounting plate. The height of the sample mounting plate can be easily adjusted up and down using screws based on the shape and height of the sample. The device is designed to meet the following standards：
EN 54-7 Fire detection and fire alarm systems — Part 7: Smoke detectors— Point detectors using scattered light, transmitted light or ionization Clause 5.14 Impact(operational)and Annex E Apparatus for impact test
EN54-11 Fire detection and fire alarm systems —Part 11: Manual call points54-11
5.15 Impact (operational)
EN14604 Smoke alarm devices Clause 5.11 Impact(operational)and Annex E Apparatus for impact test
Technical Detail of Standard Test Tunnels for factory：
Model No.
ZNEN54-IMPCT
Applicable Products

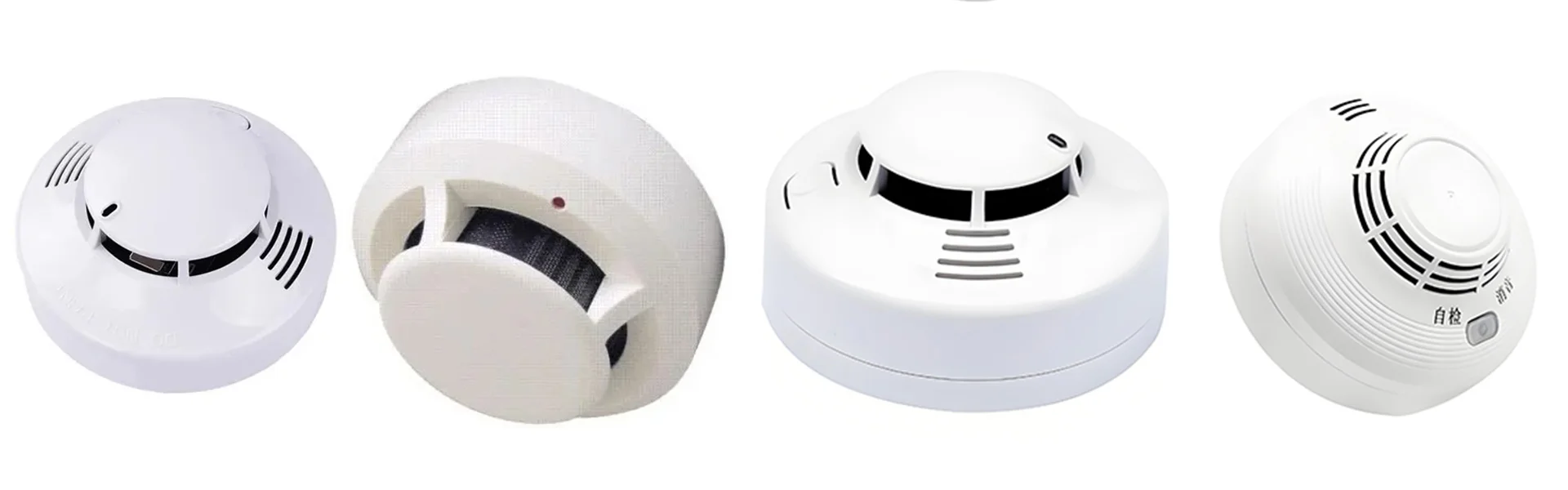

Smoke alarms, Smoke detectors, Heat detectors, Manual call point
