Standard Smoke tunnel for factory

Function:

Controlled Smoke Constantly
Smoke alarm threshold test
Smoke Sensitivity Calibration

Equipment Function：

The smoke alarm production test tunnel was designed for batch test or calibration of sensitivity test of Smoke alarms or detectors. The basic work principle is compliance to EN 14604 and EN 54-7.

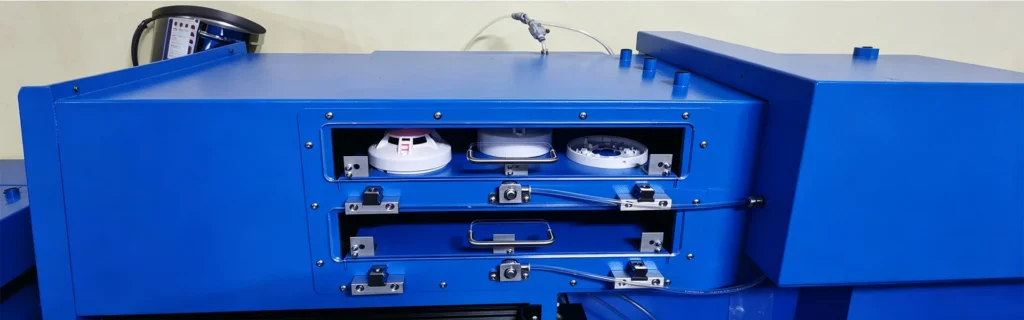

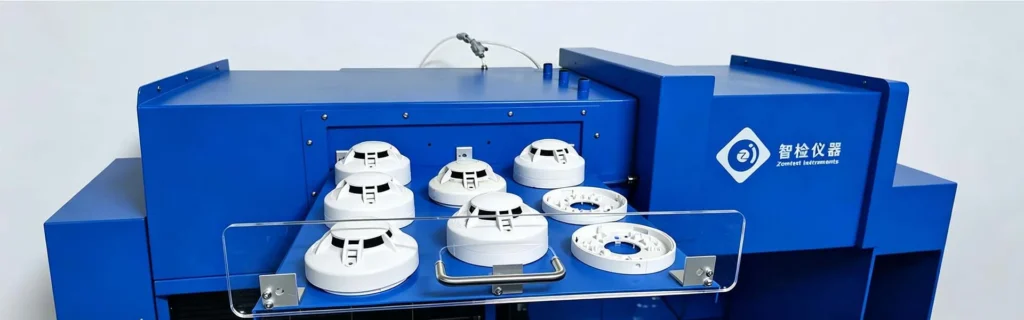

It consist of test tunnel，aerosol generator, obscuration sensor, controller and computer. The obscuration meter was made of high quality electrical and optical components to ensure precision and stable reading. The two floor trays support by rodless air cylinders. They can extend and extract by press button or automatic control. The lids are fixed on tray and can close the opening in extended position and extraction position.

The Zomtest Smoke Test Tunnel Software in English is able to set the air speed, aerosol buildup rate (ramp test), constant OBS set value. The aerosol concentration is controlled to set value by PID algorithm and can maintain the smoke density with +/-0.004dB/m in reading.

Technical Detail of Production Test Tunnels：

Model No.	ZNEN14604-18
Applicable Products	Smoke alarms, Smoke detectors, Smoke sensor for other products
Application	Batch products ramp test, constant smoke threshold test, Sensitivity calibration under constant smoke,
Standards	EN 54-7, EN 14604, UL 217, UL 268
Capacity	Normally 8 + 8 detectors one two trays
Smoke rises rate	0.01 ~ 0.10 dB/m/min, Settable
Smoke obscuration range	0 ~ 2 dB/m
Buildup Time for Constant Smoke	less them 5 minutes
Constant Smoke Control Range	+/- 0.004 dB/min
Turnaround Time	0.5 ~ 2 minutes, depend on products
Overall size	2.1m x 0.5m x 1.2n
