Gas alarm calibration test box

Equipment Functions:

The device provides a sealed test box, which can hold about 100 methane gas alarms. The controller can inject high concentration of methane gas into the box to form the required concentration of test methane gas. It can be used for batch calibration or batch detection of methane gas alarms.  An air circulating fan is installed in the box body to make the methane gas spread quickly to achieve uniform and stable methane gas and avoid the adverse effects of high concentration of methane gas on the alarm.  Air inlet and exhaust port and exhaust fan are respectively controlled by solenoid valve. After opening the solenoid valve and starting the exhaust fan to remove methane gas in the box, the door of the box can be opened to replace the methane gas alarm.

Equipment Advantages：

1. Suitable for all kinds of gas alarm, such as carbon monoxide alarm, combustible gas alarm  ；

2. Multi-function: it can test and detect all kinds of gas alarms；

3. Unique gas injection mode, short time of gas injection, fast gas injection;

4. Elaborately designed air circulation mode, uniform and stable wind speed, fast diffusion, uniform diffusion within 30 seconds ；

5. Large volume, mass production test, can accommodate more than 100 products；

6. Box sealing, no air leakage, safe and stable；

7. Slope sample rack, easy to change samples；

8. Large glass box for easy observation of alarm light；

9. Touch screen control, easy to operate；

Equipment Composition ：

Air injection controller

1. Quantitative injection of CH4 gas was realized by setting the initial injection volume and adding manual fine tuning method ;

2. Equipped with reduced pressure throttling control valve;

3. Touch screen +PLC control gas injection + manual fine tuning;
4. Adjustable DC power supply.

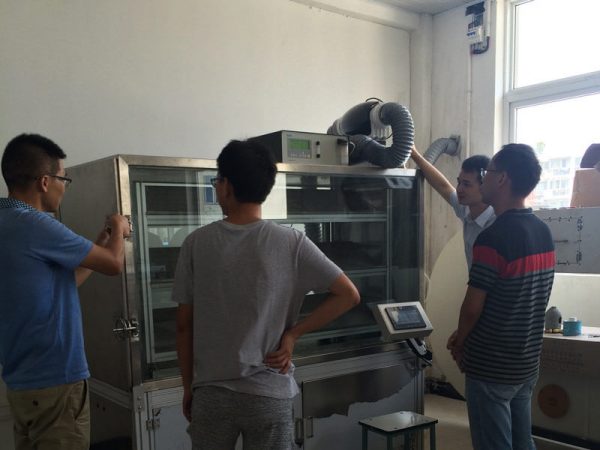

Calibration Box

1. Stainless steel + glass CH4 calibration box (containing 100 samples)

2. A set of CH4 alarm holder

3. Air inlet and exhaust port

4. nternal air circulation fan
